The chest X-ray systems produced by NIPK Electron Co. are well-known to Russian radiologists – chest X-ray systems for examinations of the thoracic organs are installed and operated in most Russian clinics.

Taking into consideration many years of experience of interaction with tuberculosis specialists and oncologists and understanding relevant radiologists’ professional needs, the Company continuously develops advanced equipment models. Chest X-ray systems are fitted out with state-of-the-art flat panel detectors, which allow obtaining an image with maximum spatial resolution.


High diagnostic quality of the image

  • Large focal distance

  • Maximum possible size of detector area
  • High spatial resolution
  • State-of-the-art  digital imaging system
  • Specialized automated program filters for image processing
  • State-of-the-art analysis of examination findings

Easiness, simplicity, and user-friendliness
  • The possibility to see the patient and adjust their position due to the stand’s open design or the built-in video camera

  • Motorized vertical movement of a detector and X-ray tube assembly or the patient elevating stand
  • Multilingual interface

Safety and low exposure dose
  • Gonads and thyroid X-ray protection

  • Minimum exposure time
  • Modern highly sensitive detector
  • Wide APR program range

Reliability and durability
  • A simple and reliable system design with the maximum throughput

  • The generator uses up-to-date knowledge in the field of voltage stabilization and protection against voltage fluctuations and power surges.

Unique benefits

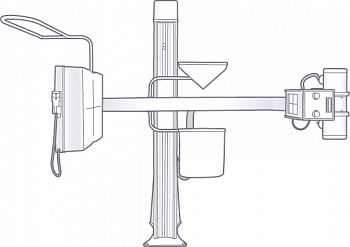

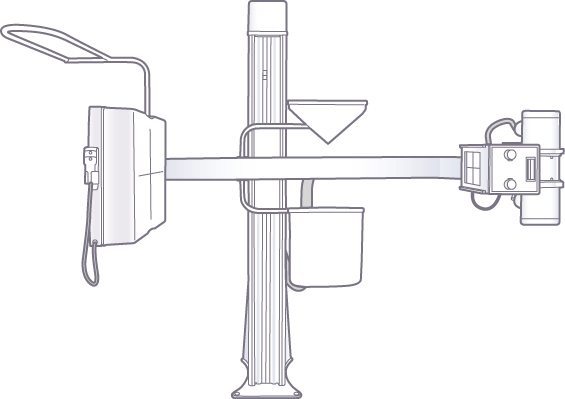

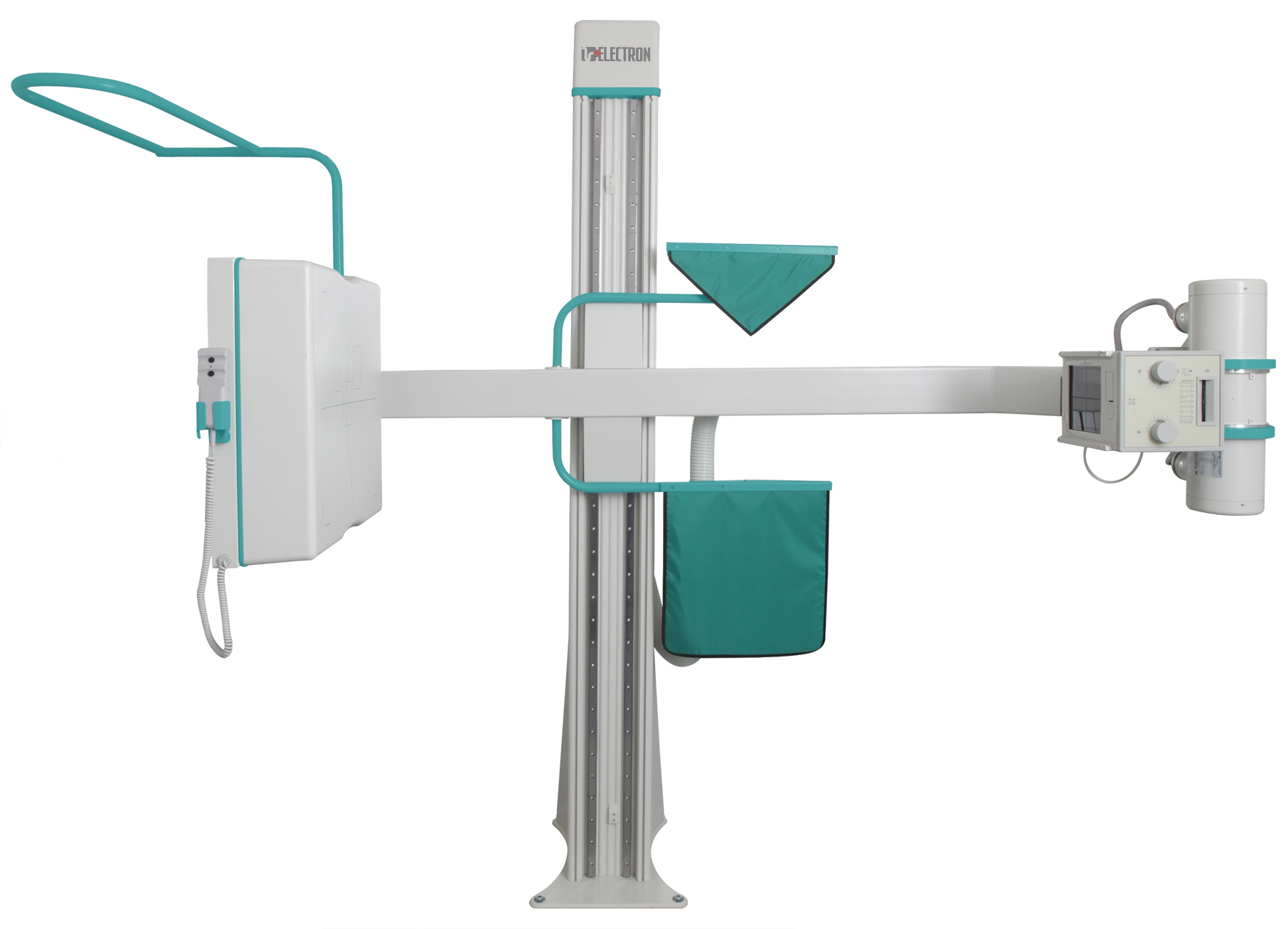

Open-type chest X-ray single-stand systems:
  • Possibility to perform an examination of the patients in both the upright and the sitting position due to free movement of the detector and the X-ray tube assembly along the body

  • Patient X-ray protective equipment fixed on the arm
  • A removable handle for convenient for lateral view examinations

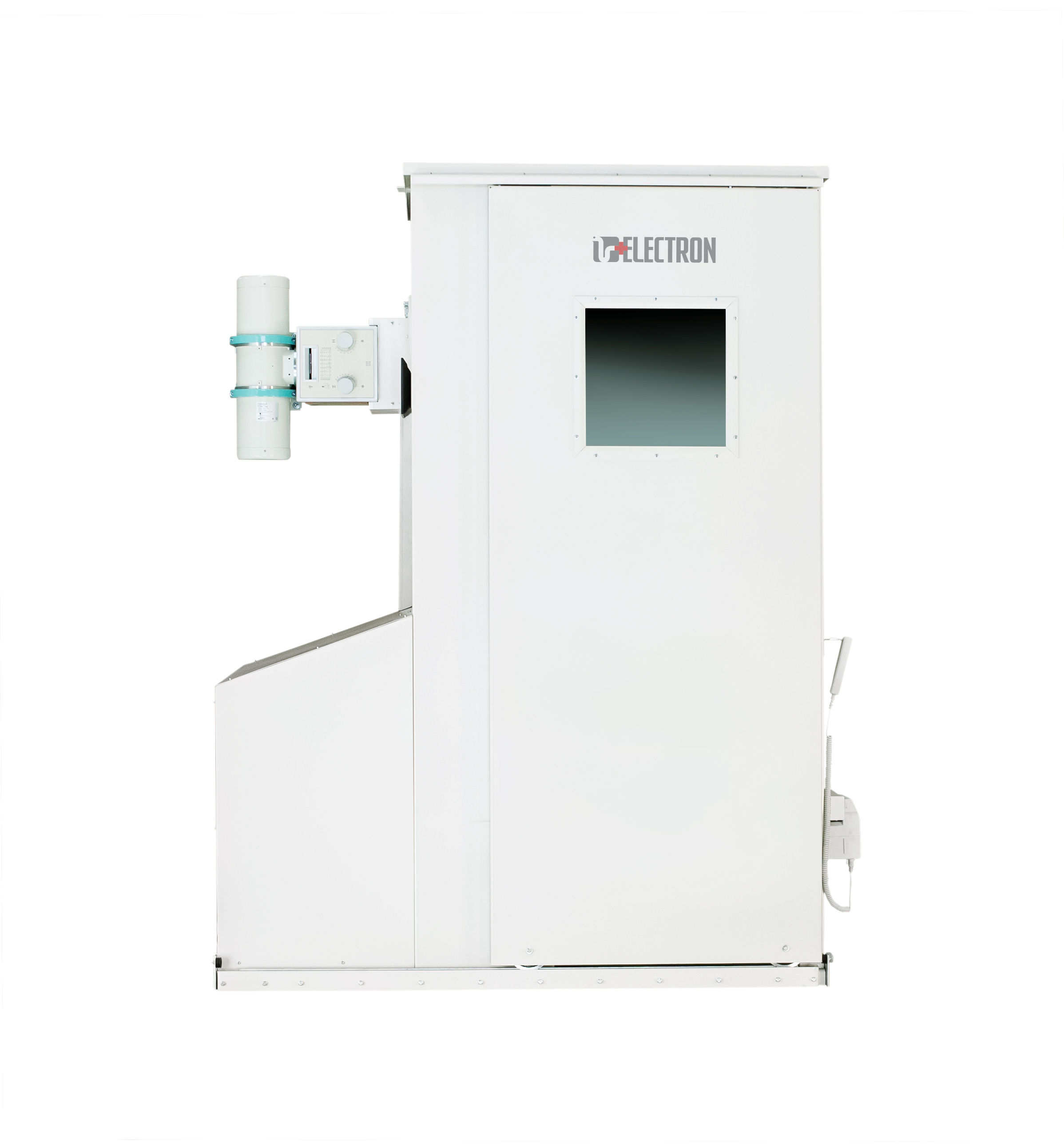

Cabin chest X-ray system:
  • Maximum X-ray protection of the medical staff

  • Small size

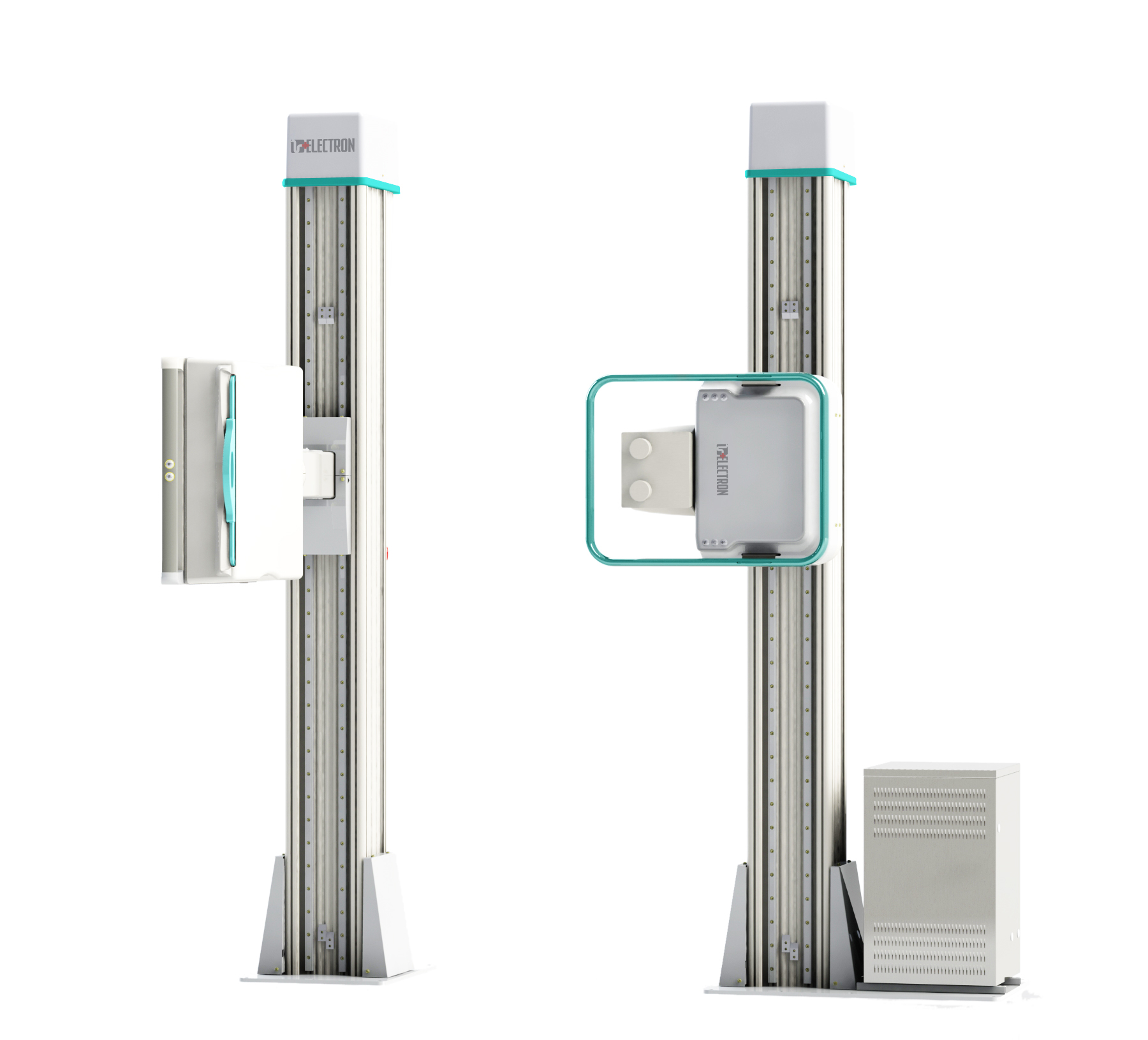

Chest X-ray double stand systems:
  • Comfortable patient positioning and performing an examination in the upright and the sitting position

  • An option to perform an examination when the patient lies in the lateral position on a mobile patient table
  • Easy patient approach to the system

Basic configuration *


High voltage generator (HVG)

  • from 30 kW; from 40 kW; from 50 kW; from 70 kW

Digital detector

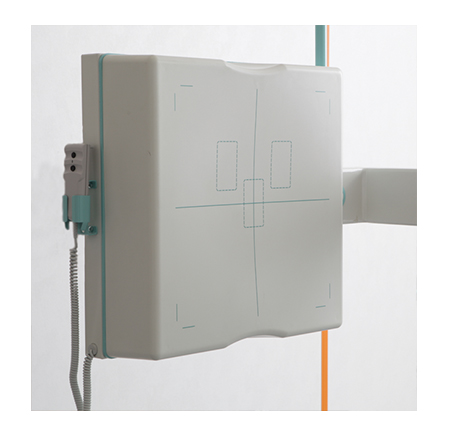

  • Flat panel detector

Stands and focal distance

  • Open-type:

- up to 120 cm

- up to 150 cm

- up to 180 cm

  • Closed-type:

- up to 120 cm

Automated workstations (AWS)

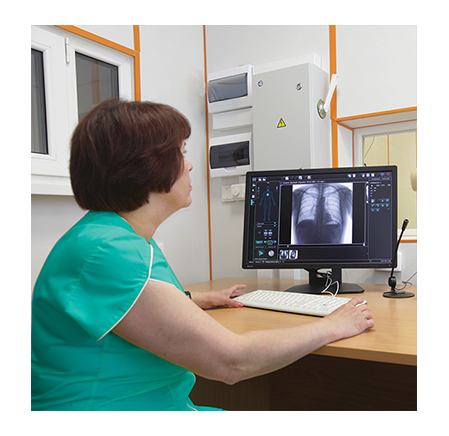

  • Operator’s workstation for system control (radiology technician’s AWS)
  • Workstation for the work with examination findings (radiologist’s AWS)


  • medical monitors
  • medical printer
  • clinician’s workstations
  • operator’s workstations
  • PACS-server

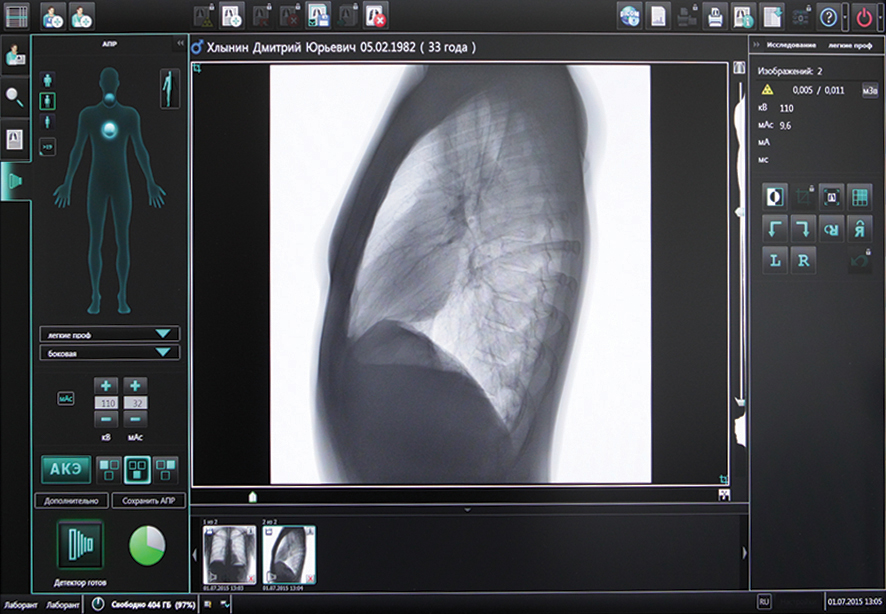

Specialized software (SW) for radiology technicians and radiologists

  • Operating the patient and image databases
  • Specialized APR programs including that for pediatrics
  • Multimodality
  • Support of DICOM 3.0 standard
  • Image postprocessing
  • X-ray dosimetry
  • Color X-ray technology

*The “Basic configurations” section includes the information only on the most demanded configurations; the general list is significantly wider. Any configuration and technical parameters can be changed by the manufacturer’s initiative or at the customer’s request.
