Description

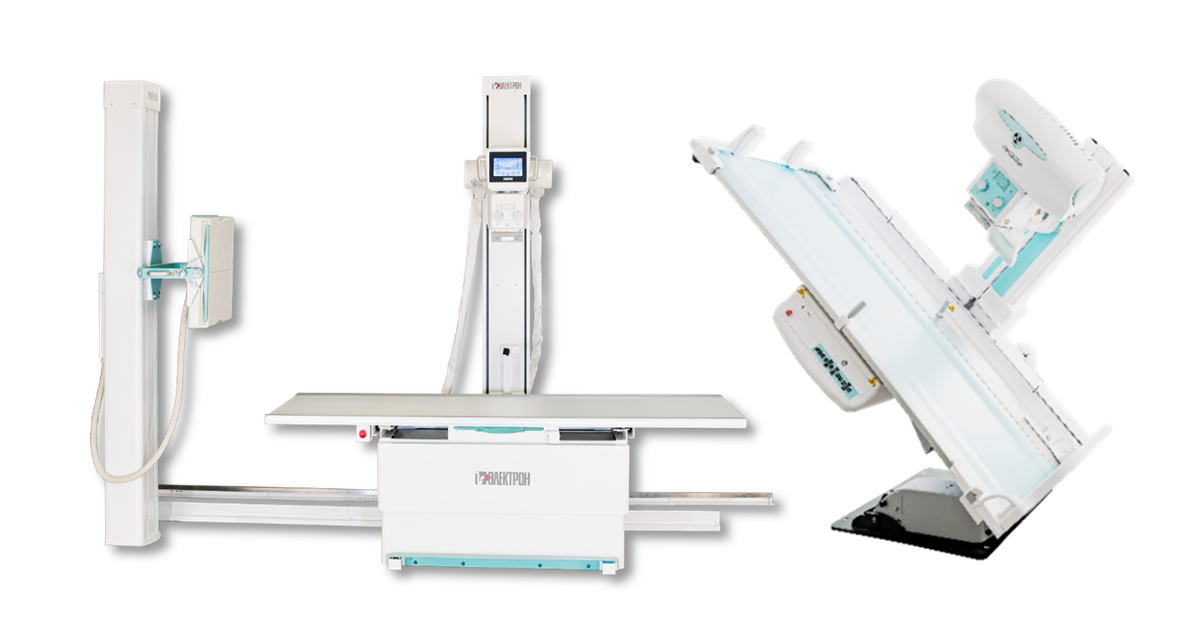

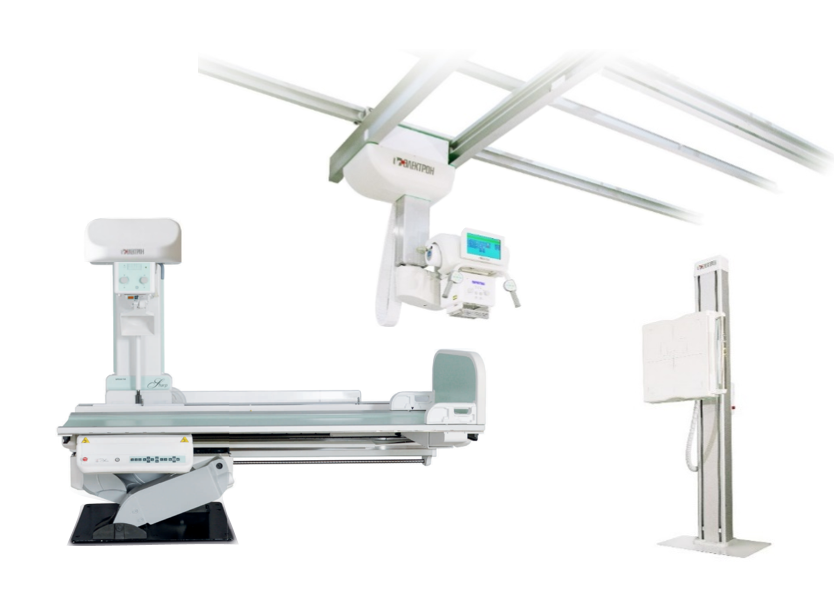

The range of digital radiography/fluoroscopy systems produced by NIPK Electron Co. is a versatile solution allowing to perform the whole examination range in radiography, linear tomography and fluoroscopy modes, which is relevant in modern radiology.

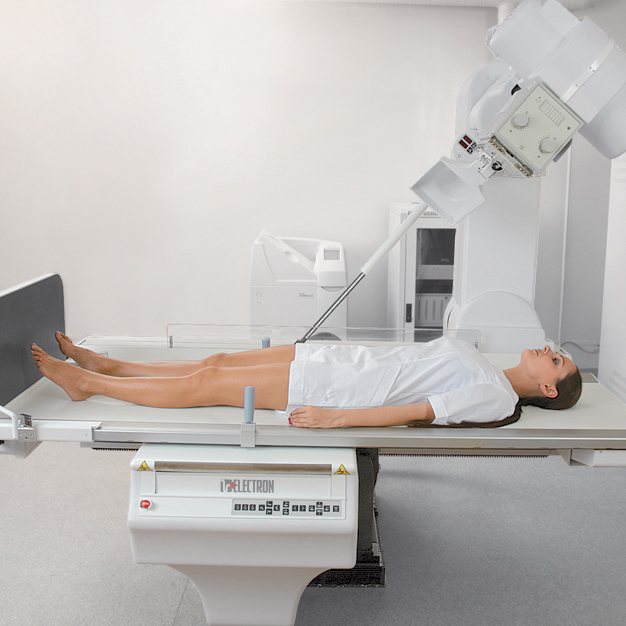

A specific feature of the system developed by the company is that the system includes a fluoroscopy tilting table with remote control and so all examinations can be performed from the control room. This ensures the operator’s comfort and safety.



Benefits

Easiness, simplicity, and user-friendliness


  • Possibility to control movements of a fluoroscopy tilting table remotely

  • Possibility of control directly beside the fluoroscopy tilting table
  • Motorized movement of stands, a detector, an X-ray source, and tabletop
  • User-friendly ergonomic remote control console
  • Color touch display
  • Multilingual interface

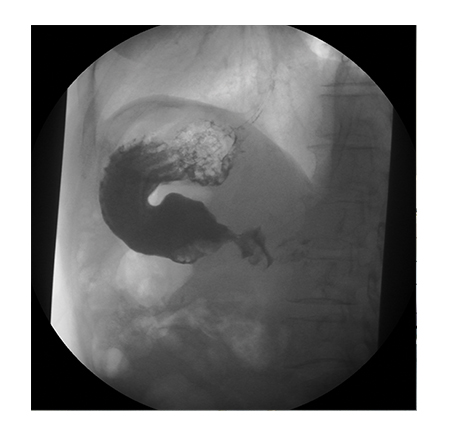

High diagnostic image quality


  • State-of-the-art digital imaging system

  • Automated program filters for image processing
  • High spatial resolution
  • Maximum possible size of the detector active area
  • State-of-the-art analysis of examination findings
  • High fluoroscopy rate

Mobility and multifunctionality


  • The widest range of system movement

  • Wide range of tomography angle setting
  • Diagnostic imaging of the extremities with the examined region positioned directly on the detector surface
  • Examinations in oblique, axial, and tangential views

Safety and low exposure dose


  • Highly sensitive digital X-ray detectors

  • Removable grid
  • Wide APR program range for patients of various ages and body-build
  • Automatic exposure control (AEC)
  • Possibility to perform all examination types, including fluoroscopy, from the control room

Reliability and durability


  • Reliable fixed digital detectors

  • Elaborated and reliable stand design
  • The generator uses the up-to-date knowledge in the field of voltage stabilization and protection against voltage fluctuations and power surges.

Basic configuration *

Description

High voltage generator (HVG)

  • from 50 kW; from 65 kW

Flat panel detector for fluoroscopy

  • Digital I.I.

Flat panel detector for radiography

  • Flat panel detector

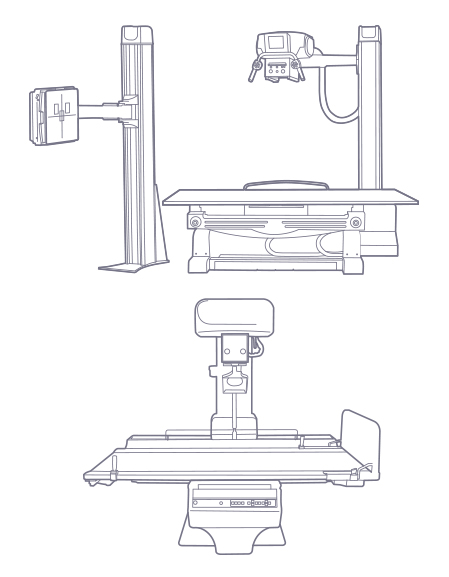

Vertical stand

  • Elevating table top
  • Motorized movement of stands, detector, X-ray source and table top
  • The stand with the possibility to move a detector beneath a mobile patient table and for imaging the extremities directly on the detector
  • X-ray tube assembly with motorized movement providing for focal distance maintenance and automatic X-ray tube assembly positioning onto a detector of a vertical stand

Automated workstations (AWS)

  • Operator’s workstation for system control (radiology technician’s AWS)
  • Workstation for the work with examination findings (radiologist’s AWS)

Additionally:

  • medical monitors
  • medical printer
  • clinician’s workstations
  • operator’s workstations
  • PACS-server

Specialized software (SW) for radiology technicians and radiologists

  • Operating the patient and image databases
  • Specialized APR programs including that for pediatrics
  • Multimodality
  • Support of DICOM 3.0 standard
  • Image postprocessing
  • X-ray dosimetry
  • Color X-ray technology

Specialized appliances for patient positioning

  • X-ray transparent step
  • Positioning systems of children of various age groups

X-ray radiation protective equipment for patients and staff

  • X-ray protective clothes for the medical staff
  • Personal protection equipment for patients
  • X-ray protective windows of different sizes

*The “Basic configurations” section includes the information only on the most demanded configurations; the general list is significantly wider. Any configuration and technical parameters can be changed by the manufacturer’s initiative or at the customer’s request.


Expert opinions

Bazhenova A.V.
Bazhenova A.V.
Head of the Department of Diagnostic Radiology, State Healthcare Institution "Lipetsk Regional Children's Hospital"
"...Radiography has two built-in detectors. It is very convenient - you don’t have to wear anything and you won’t break anything".
